FIBER

While speed and bandwidth requirements are growing exponentially, budgets to accommodate this growth are not. That’s why it’s imperative to have an infrastructure that can adapt and scale, eliminating costly rip and replace projects when new technologies emerge.

You can rely on Kinvergent to strategically position your infrastructure to meet those growing demands. With a manufacturer agnostic approach, Kinvergent takes the best of one or several manufacturers to deliver an infrastructure that’s simple to manage, easily accommodates new technologies, exceeds performance requirements, and fits within your budget.

We support all the major manufacturers (see product line card for complete list), so it’s not our intent to recreate all of their product pages on our website. Instead please consider us your personal search engine for connectivity. Engage our experienced team when you have a requirement and we’ll propose multiple solutions based on your criteria.

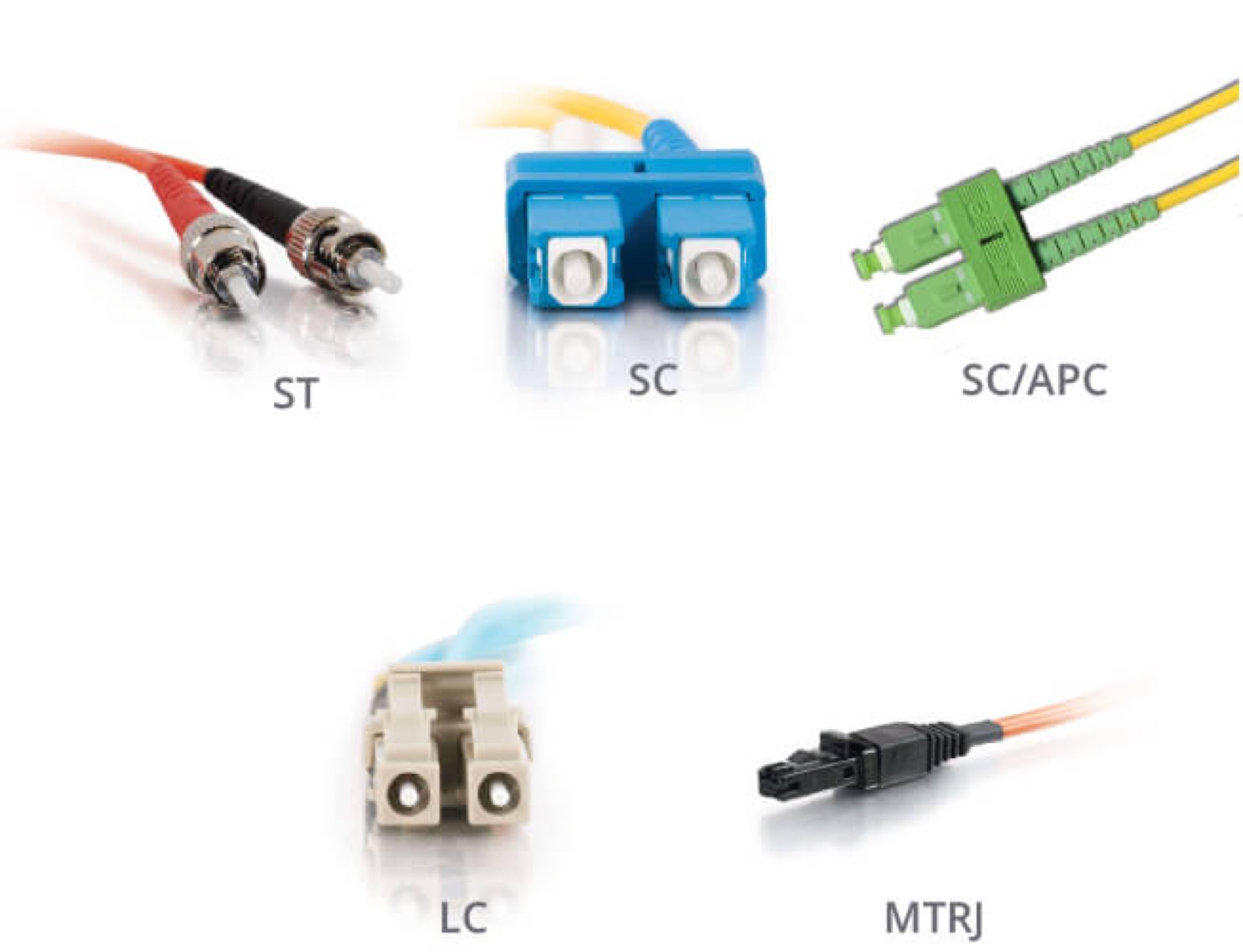

KINVERGENT ELITE SERIES STOCK FIBER

Elite Series Stock Fiber Patch Cables

  • Corning ClearCurve optical fiber
  • Factory terminated for superior performance
  • Insertion loss and reflectance tested on all connectors with results included
JACKETS

2.0 mm riser

CONNECTORS

ST, SC, SC/APC, LC

POLISHES

PC (Physical Contact), UPC (Ultra Physical Contact), APC (Angled Physical Contact)
FIBER TYPES

Multimode 62.5um (OM1), 50um (OM2, OM3, OM4, OM5) Singlemode 9um (OS2), Mode Conditioning Patch Cables

STOCK LENGTHS

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 15, 20, 25, 30 Meters

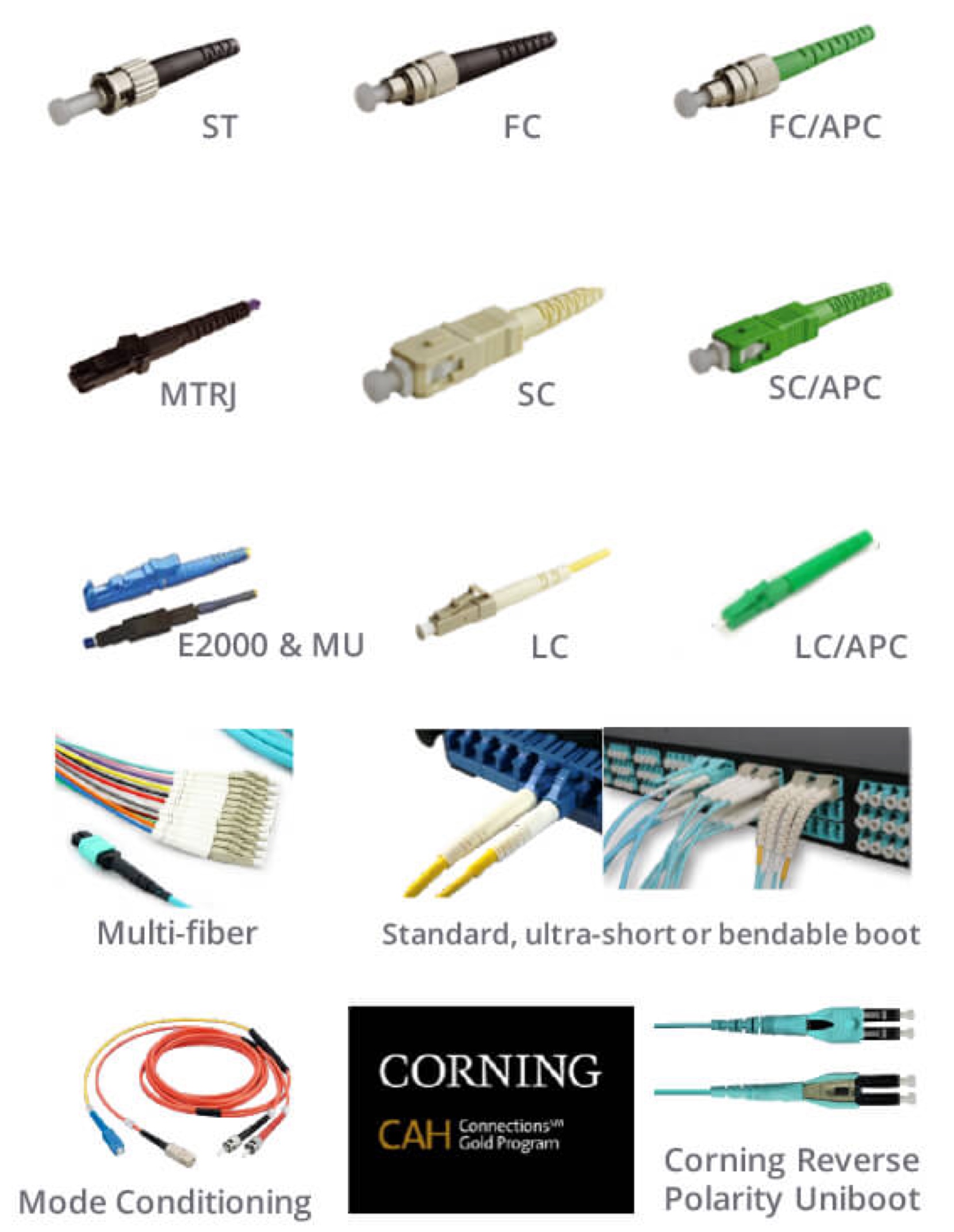

KINVERGENT ELITE SERIES CUSTOM AND SPECIALITY FIBER

Custom and Speciality Fiber Assemblies

  • Corning ClearCurve optical fiber
  • Factory terminated for superior performance
  • Insertion loss and reflectance tested on all connectors with results included
JACKETS

1.6, 2.0, 3.0 mm riser, plenum and LSZH

CONNECTORS

ST, FC, FC/APC, SC, SC/APC, LC, LC/APC, MTRJ, E2000, MPO/MTP

POLISHES

PC (Physical Contact), UPC (Ultra Physical Contact), APC (Angled Physical Contact)

FIBER TYPES

Multimode 62.5um (OM1), 50um (OM2, OM3, OM4, OM5) Singlemode 9um (OS2), Mode Conditioning Patch Cables
FIBER COUNTS

1-144 fibers

BOOTS

Standard or ultra-short and bendable boots for limited clearance installations

COLORED ZIP CORD

Orange, Aqua, Yellow, Blue, White, Green, Red, Pink, Gray, Rose, Purple, Black, Brown
  • Corning Gold assemblies eligible for Corning Extended Warranty Program which provides a 25-year project warranty when installed by a certified installer.

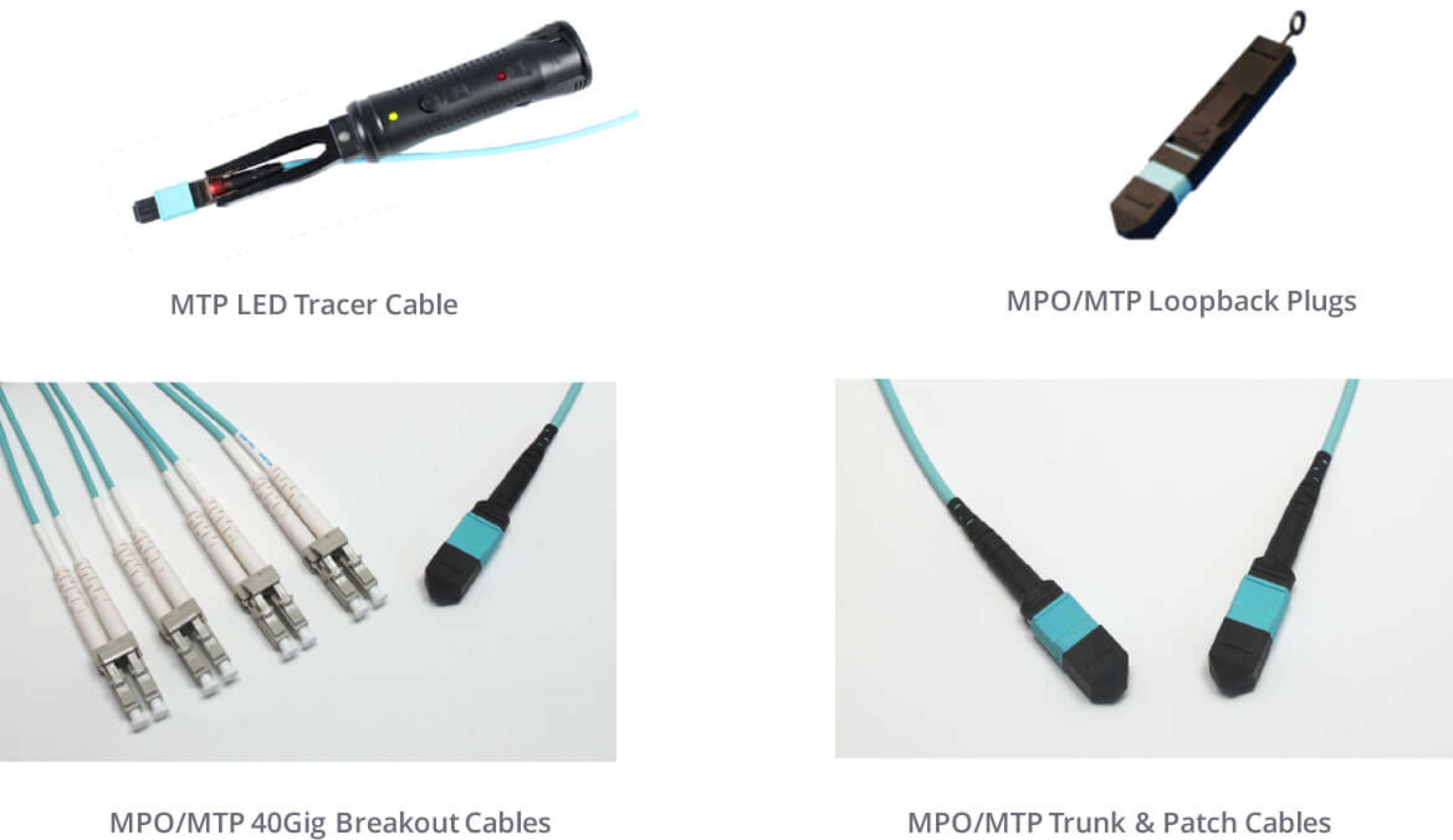

HIGH-DENSITY MPO/MTP FIBER SOLUTIONS FOR 10G, 40G, AND 100G

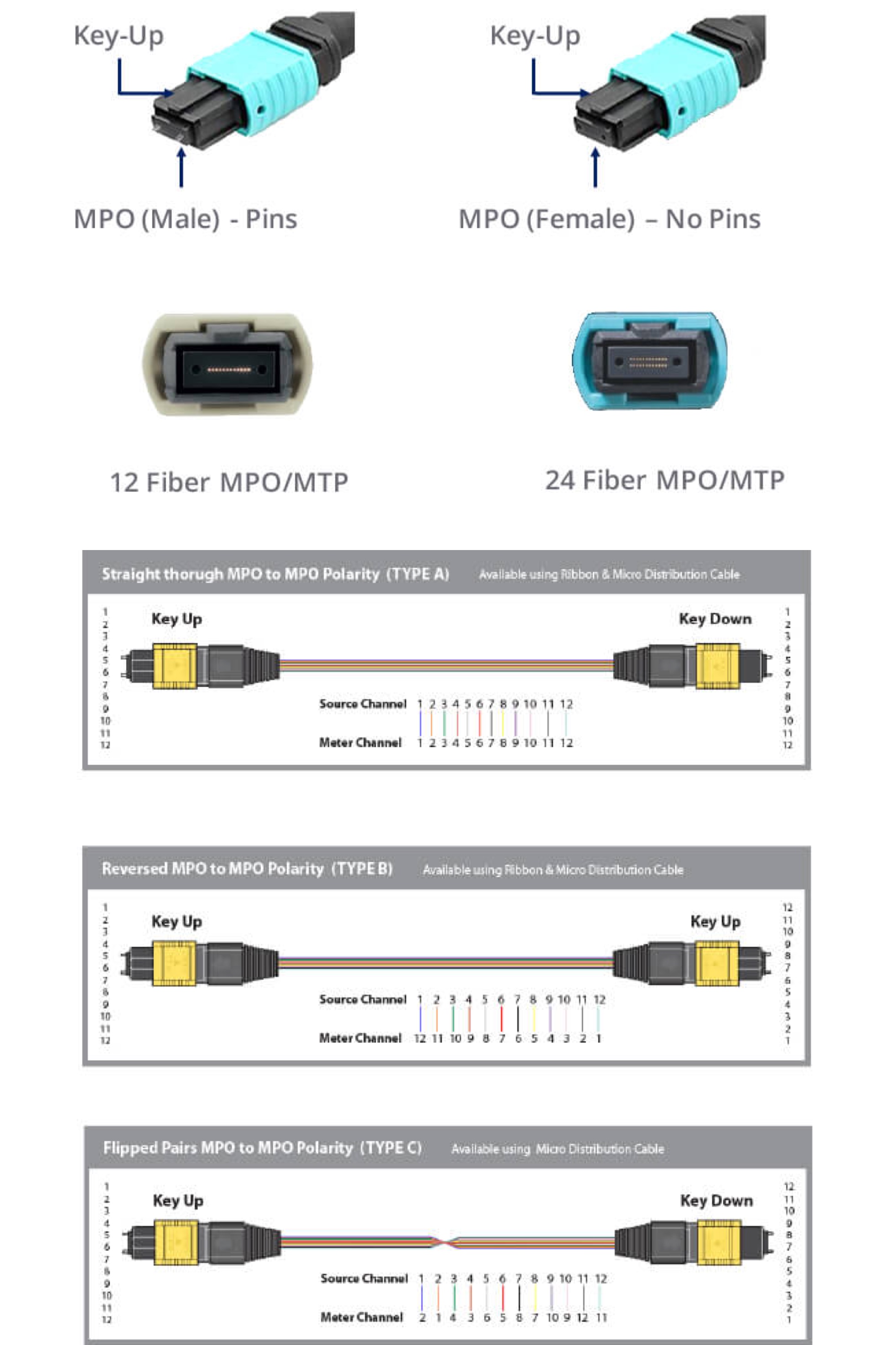

What is MPO/MTP?

MPO is a Multifiber Push-On connector defined by IEC-61754-7 and TIA-604-5-D, also known as FOCIS 5. When this factory-terminated 12 or 24 fiber connector is combined with a small diameter ribbon or round cable, extreme density and ease of deployment become the new normal.

The MPO connector can be male or female. They are visibly recognizable by the inclusion of alignment pins (male) or lack there of (female).

MTP is a type of MPO connector patented and made by US Conec that includes mechanical and performance enhancements, but remain 100% compatible with each other.

General Rules for Polarity and Gender

  1. Use the same type of patch cable in your network closets and data centers to eliminate polarity confusion. For example, the most common for LC-LC duplex is a Type A to B crossover (maps Tx to Rx ports)
  2. MPO/MTP connectors should always mate Male to Female for the lowest loss
  3. Active equipment is always pinned Male, so MPO/MTP patch cables should always be Female to Female to avoid damage
  4. Cassettes are typically made with Male MPO/MTP connectors
  5. Trunk cables between cassettes should be Female to Female and use Polarity C. This keeps the cassettes the same on both ends and allows the use of standard patch cables to your equipment
  6. NOTE: There can be exceptions to these rules depending on your current infrastructure and future initiatives, so we encourage you to contact one of our engineers to confirm your exact installation requirements.
    Call or email us today

Call or email us today

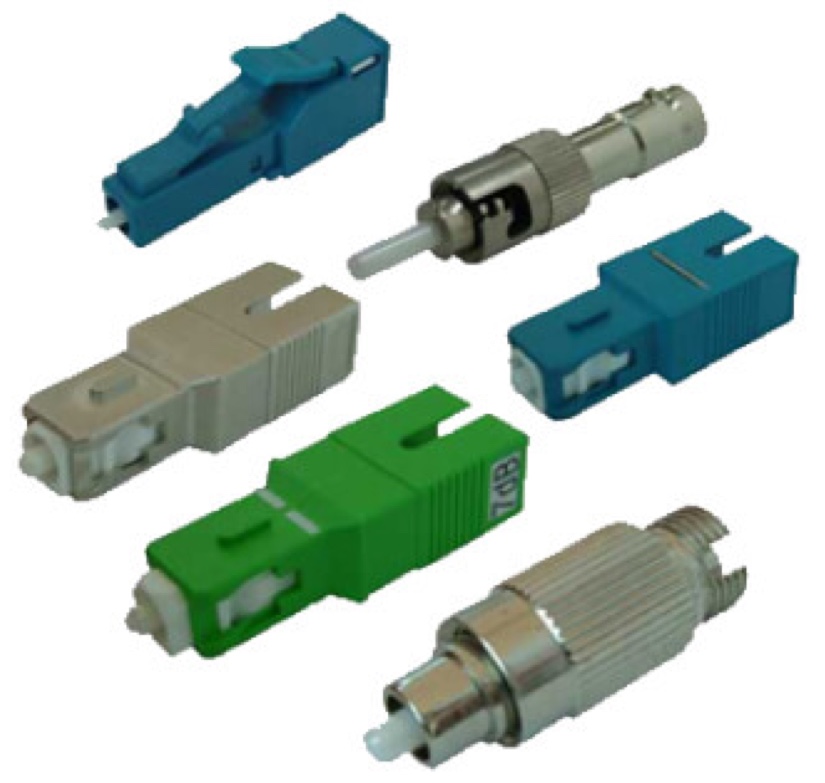

Build-Out Style Attenuators

  • ST, FC, FC/APC, SC, SC/APC, LC (Male to Female Build-Out Style)
  • Singlemode
  • 1-20 dB Fixed Attenuation Values
  • Variable attenuators also available

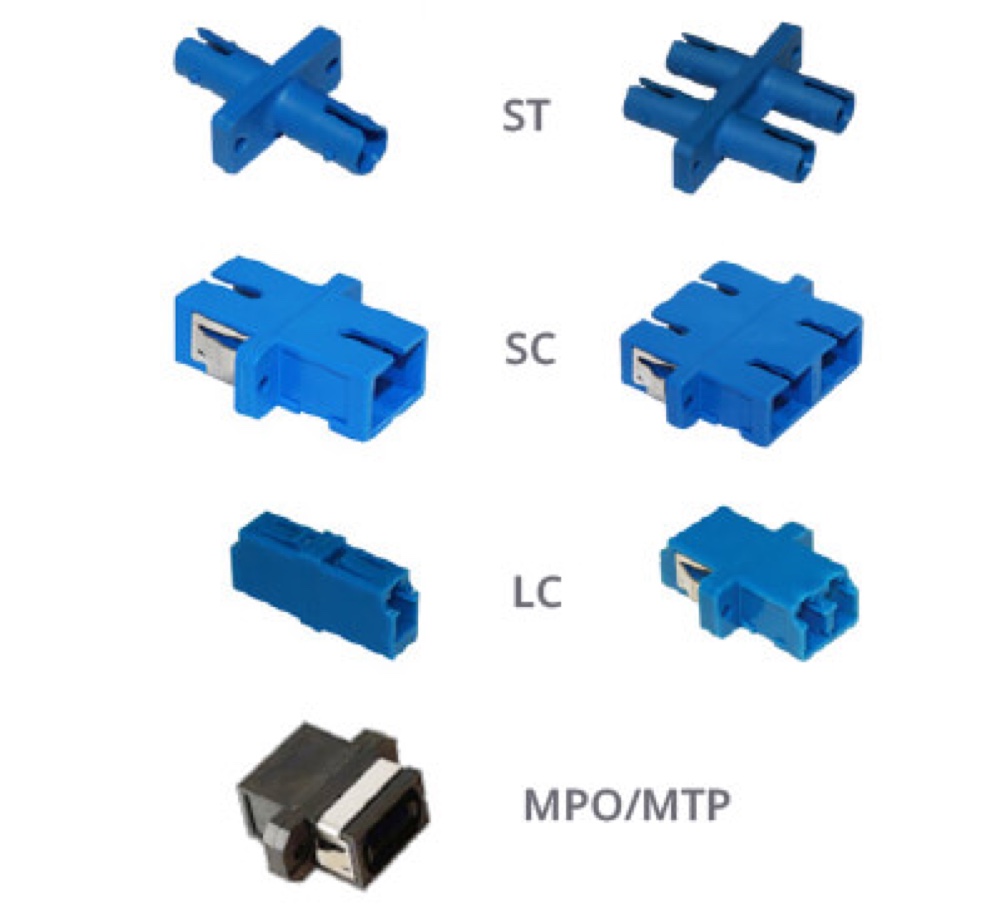

Fiber Adapters/Couplers

  • ST, SC, LC, MPO/MTP
  • Simplex and Duplex
  • Zirconia Polymer for Singlemode or Multimode, 10Gig Compliant
  • Hybrid adapters also available

TABLE OF DISTANCE BY SPEED AND FIBER TYPE

Speed Wavelength
(nm)		 OM1 (Orange)
62.5um		 OM2 (Orange)
50um		 OM3 (Aqua)
50um		 OM4 (Aqua)
50um		 OS1 (Yellow)
9um
1000Base-SX 850 220m 550m 550m 550m –
1000Base-LX 1300 550m* 550m* 550m* 550m* 10km
10GBase-SR 850 32m 82m 300m 400m –
10GBase-LR 1310 300m* 300m* 300m* 300m* 10km
40GBase-SR4 850 – – 100m 150m –
40GBase-LR4 1310 – – – – 10km
100GBase-SR4 850 – – 100m 150m –
100GBase-LR4 1310 – – – – 10km

* Requires use of mode-conditioning path cable at each end of the link.
